6月から開催中のスペイン・サラゴサ万博で会場への入口となる橋状のパビリオン。
パビリオンが架かるエブロ川の右岸から中州までは約185m、中州から左岸の万博会場までは約85mの距離を繫ぐ
Zaha Hadid Architectsによる複雑且つ有機的形状のデザインです。
最近の先端建築は今までの常識では考えられない自由なフォルムを採用する事例が目立ちますが、その背景には、コンピューター技術の向上、鋼材の多様化、免震・制振技術の普及、社会の要請(従来の形状が飽きられている)があると言われており、このトレンドはしばらく続くものと予測されています。
そして、Zaha Hadidはかなり以前から独創的なフォルムに挑戦しており、自由な建築デザイン分野でのトップランナーだと思います。
ところで、先日セシル・バルモンド氏と伊東豊雄氏のセミナーに参加した際に、シンプルなアルゴリズムを元にして、そのアルゴリズムをコンピュータを駆使して回転、複製、反転、拡大縮小して組み合わせることで、新次元の美しい建築のフォルムが導き出されるというお話を聴くことができました。
複雑系に潜むシンプルなエッセンス・・・
このBridge Pavilionの基本となるシンプルな何かが気になります・・・
ZARAGOZA BRIDGE PAVILION [ZARAGOZA, SPAIN]

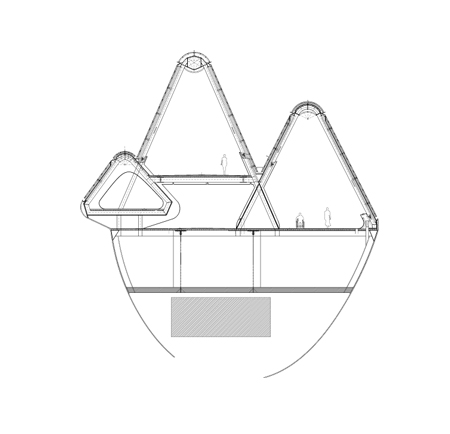

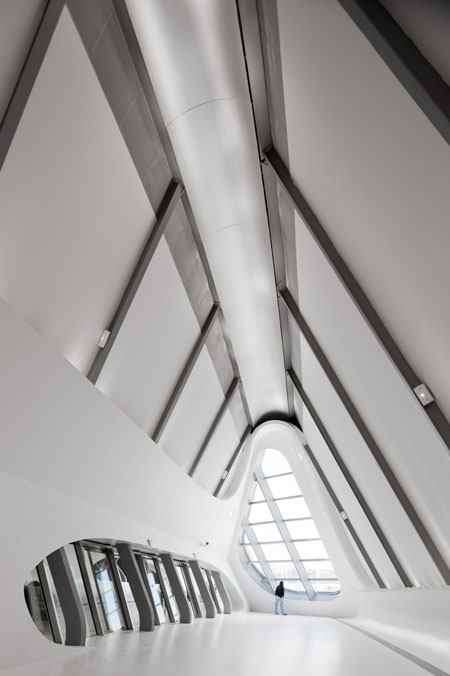

The Zaragoza Bridge Pavilion is organized around 4 main objects, or “pods” that perform both as structural elements and as spatial enclosures. The Bridge Pavilion design stems from the detailed examination and research into the potential of a diamond shaped section - which offers both structural and programming properties. As in the case of space-frame structures, a diamond section represents a rational way if distributing forces along a surface.
Underneath the floor plate, a resulting triangular pocket space can be used to run utilities. Floors inside each pod are located at the Expo principal levels: +201.5m (the soffit of the bridge is at +200m, flood protection minimum level of the Ebro River at the location of the Bridge Pavilion) +203m, +206m and +207.5m for the upper level.

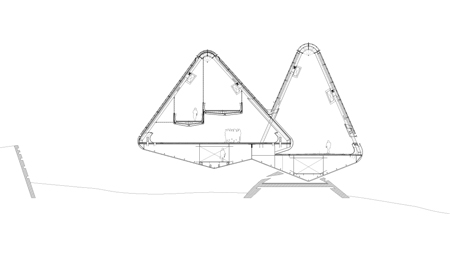

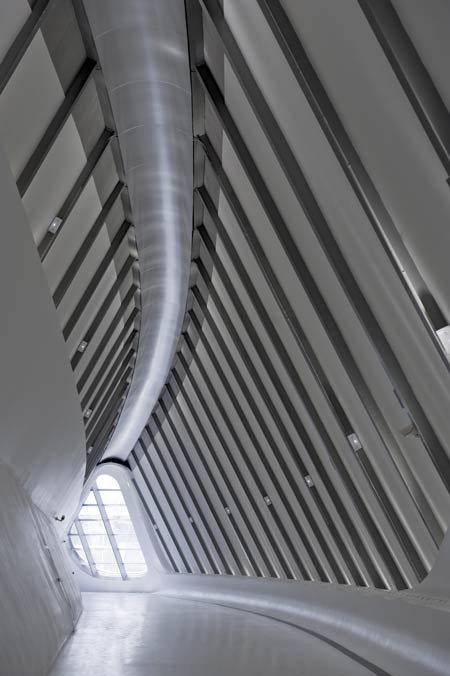

The diamond section has also been extruded along a slightly curved path. The extrusion of this rhombus section along different paths has generated the four separate ‘pods’ of the Bridge Pavilion. The stacking and interlocking of these truss elements (the ‘pods’), satisfies two specific criteria: optimizing the structural system, and allowing for a natural differentiation of the interiors, where each pod corresponds to a specific exhibition space.

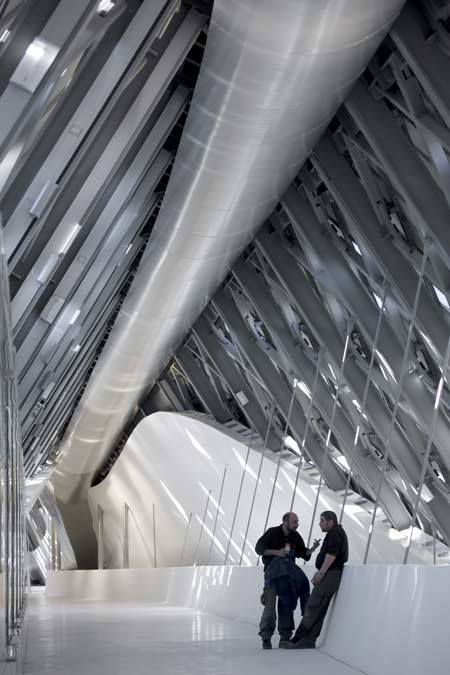

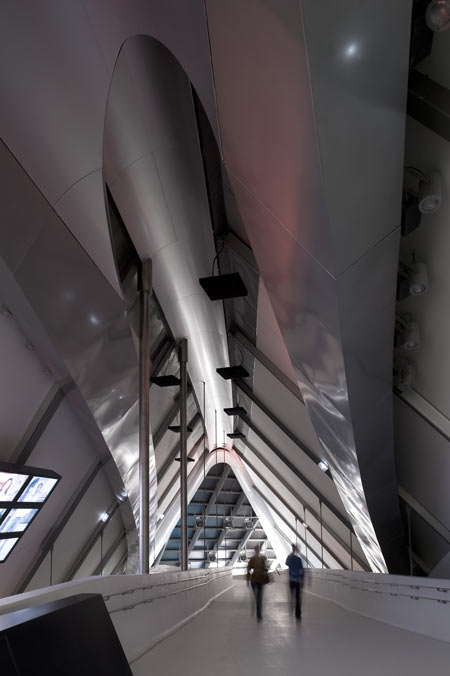

By intersecting the trusses/pods, they brace each other and loads are distributed across the four trusses instead of a singular main element, resulting in a reduction in size of load-bearing members.
The pods are stacked according to precise criteria - aimed at reducing the section of the bridge as much as possible where the span is longer (approximately 185m from the island in the middle of the river to the right bank), and enlarging it where the span is shorter (85m from the island to the Expo riverbank). One long pod spans from the right riverbank to the island, where the other three are grafted into it, spanning from island to left bank.

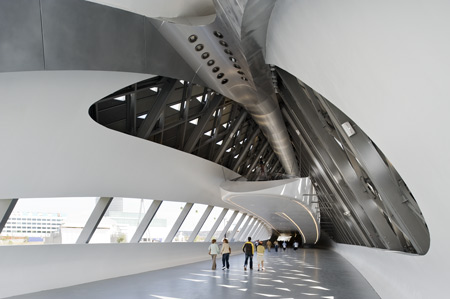

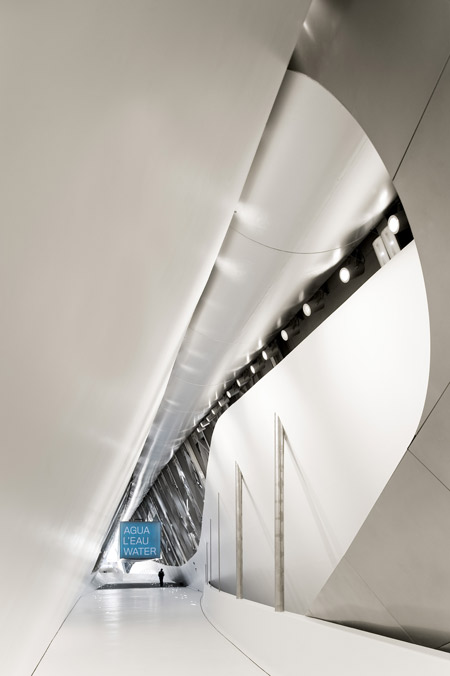

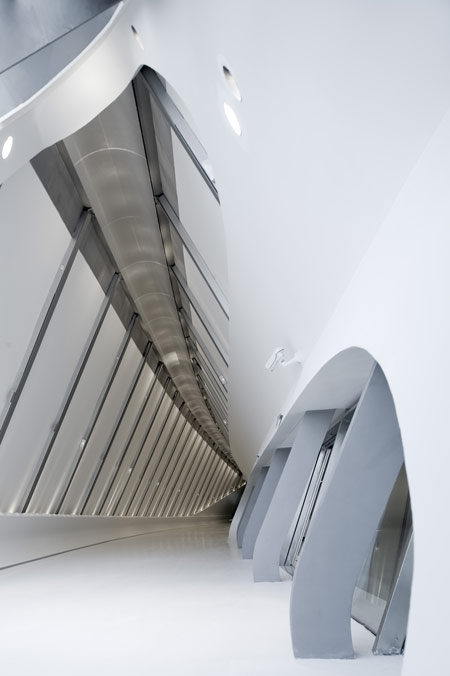

This interlocking of the pods has given the design many exciting possibilities. Interiors become complex spaces, where visitors move from pod to pod though small in-between spaces that act as filters - or buffer zones. These zones diffuse the sound and visual experience from one exhibition space to the next, allowing for a clearer understanding of the installation content within each pod. The identity of each pod remains thoroughly readable inside the pavilion, almost performing as a three-dimensional orientation device.

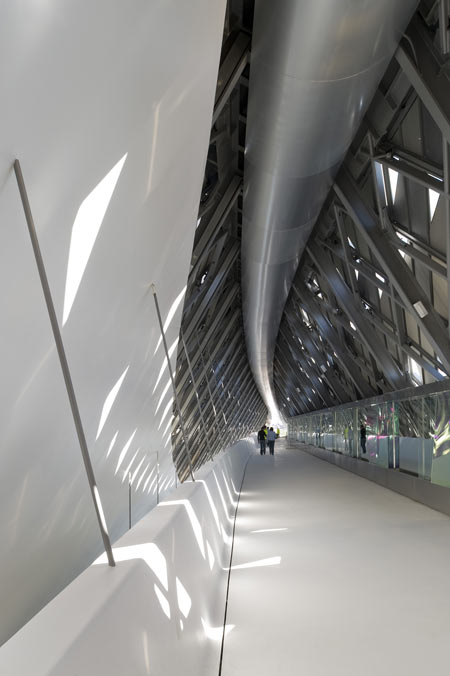

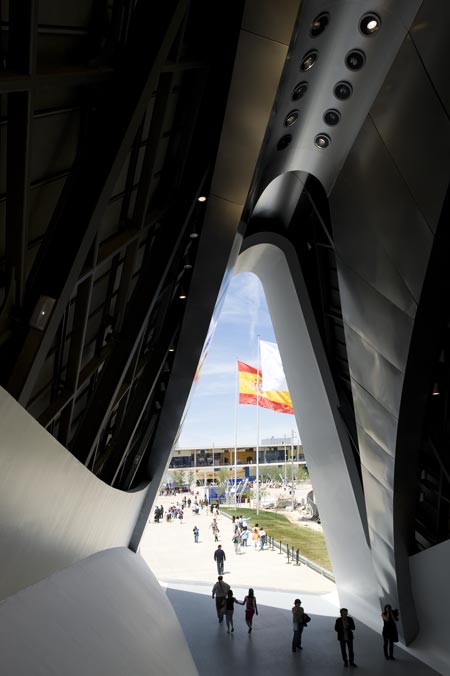

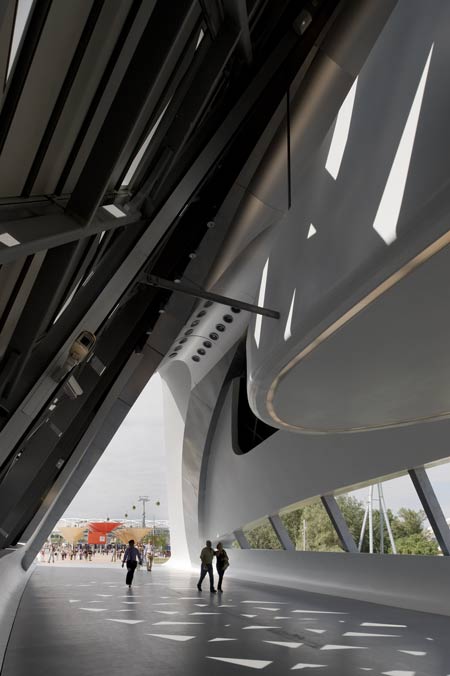

Spatial concern is one of the main drivers of this project. Each zone within the building has its own spatial identity; their nature varies from complete interior spaces focused on the exhibition, to open spaces with strong visual connections to the Ebro river and the Expo.

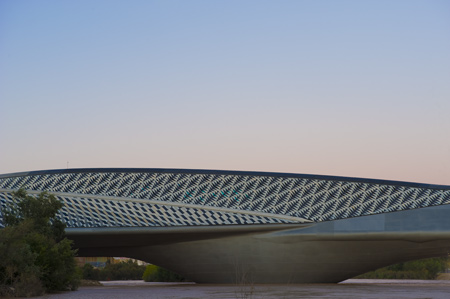

Natural surfaces have been investigated when designing the Pavilion’s exterior surfaces. Shark scales are fascinating paradigms both for their visual appearance and for their performance. Their pattern can easily wrap around complex curvatures with a simple system of rectilinear ridges. For the Bridge Pavilion, this proves to be functional, visually appealing and economically convenient.
The building’s envelope plays an essential role in defining its relation to the surrounding environment and atmospheric variations. The project has been designed to allow its interior to be thoroughly enlivened by the effect of atmospheric agents, such as the Tramontana wind blowing along the Ebro and, the strength of Zaragoza’s sunshine.

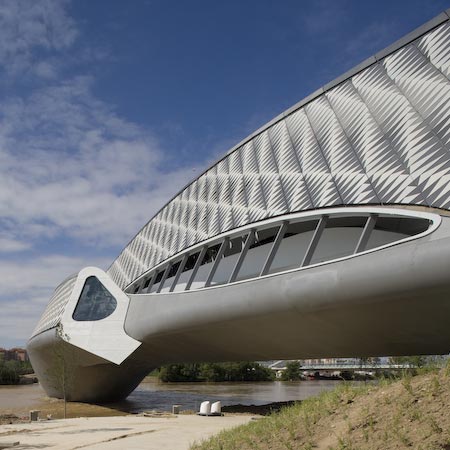

During the Expo, a single weathering layer will enclose the building to protect it from rain. This Shark scale skin will be generated by a complex pattern of simple overlapping
shingles. Some shingles can rotate around a pivot, allowing for temporary opening or closing of part of the façade. The pattern of shingles overlapping each other gives the Bridge Pavilion the widest variety of natural light via several degrees of aperture sizes: from rays piercing through tiny apertures - to wide, full size openings. Large apertures are located on the lower level, in correspondence with either end of the bridge, allowing for the greatest degree of visual contact with the river and the Expo.
